Description
Grupo Epelsa PMI-DXN Washdown Platform Scale
industrial scales
Transport and logistics Mining industry Agricultural and livestock Building Waste management Postal, Port and Airport Chemical and Petroleum automotive Manufacturing industry

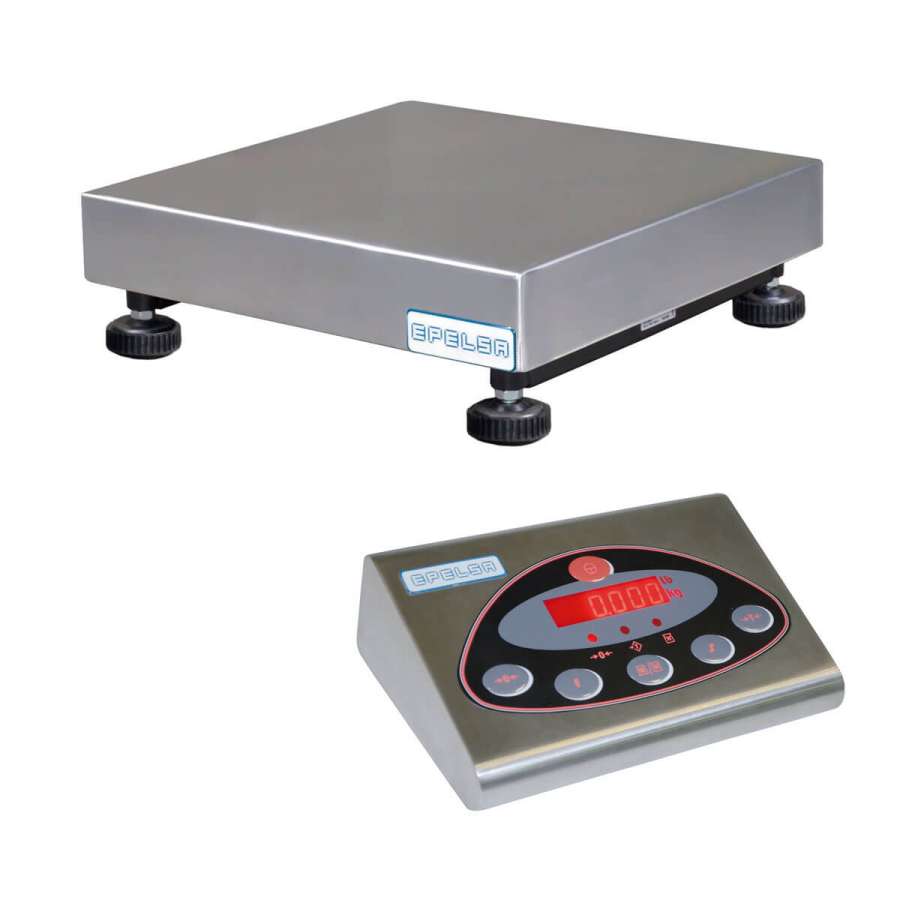

Set consisting of a DXN Viewer and a PM-40 or PMI-40 Platform
Features DXN Viewer
IP65 stainless steel waterproof housing.
Wall fixing for placement on the wall or column.
6-button keypad with 14mm high 6-digit LED numeric display.
Keyboard calibration.
Programmable indicator from 1kg to 150t.
Number of divisions: from 100 to 10,000 with steps of 100.
RS-232 output for printer or computer.
Alternate power supply: 220V +10% -15% and 50/60 Hz with TT.
Consumption: Network 7 VA max.
Protection against HF radiation and network outages.
Characteristics Platform PM-40
Mono-cell platform painted with stainless steel cover.
Dimensions: 400 x 400 x 90mm (without feet)
Stainless cover and IP65 protection.
Platforms with black painted steel structure.
Height adjustable feet with rubber support.
Screws, cover, and level support in stainless steel.
Load cells approved for 3000 divisions.
Static overload protection.
Capacities: 15kg, 30kg, 60kg and 150kg.
Features PMI-40 Platform
AISI 304 stainless steel platform.
Dimensions (without feet mm):
400 x 400 x 90 / 600 x 600 x 115 / 800 x 800 x 130.
IP-65 protection.
Height-adjustable feet with rubber support
Screws, cover, and level support in stainless steel.
Load cells approved for 3000 divisions.
Static overload protection.
Capacities: 15kg, 30kg, 60kg and 150kg.
Additional information
| Weight | 20 kg |
|---|---|
| capacity | 15kg x 5g (400x400mm Platform), 30kg x 10g (400x400mm Platform), 60kg x 20g (400x400mm Platform), 150kg x 50g (400x400mm Platform), 300kg x 100g (600x600mm Platform) |
Brand
Grupo Epelsa
