Manconi Smarty 300 VX BVC Slicer 1 Phase

Description

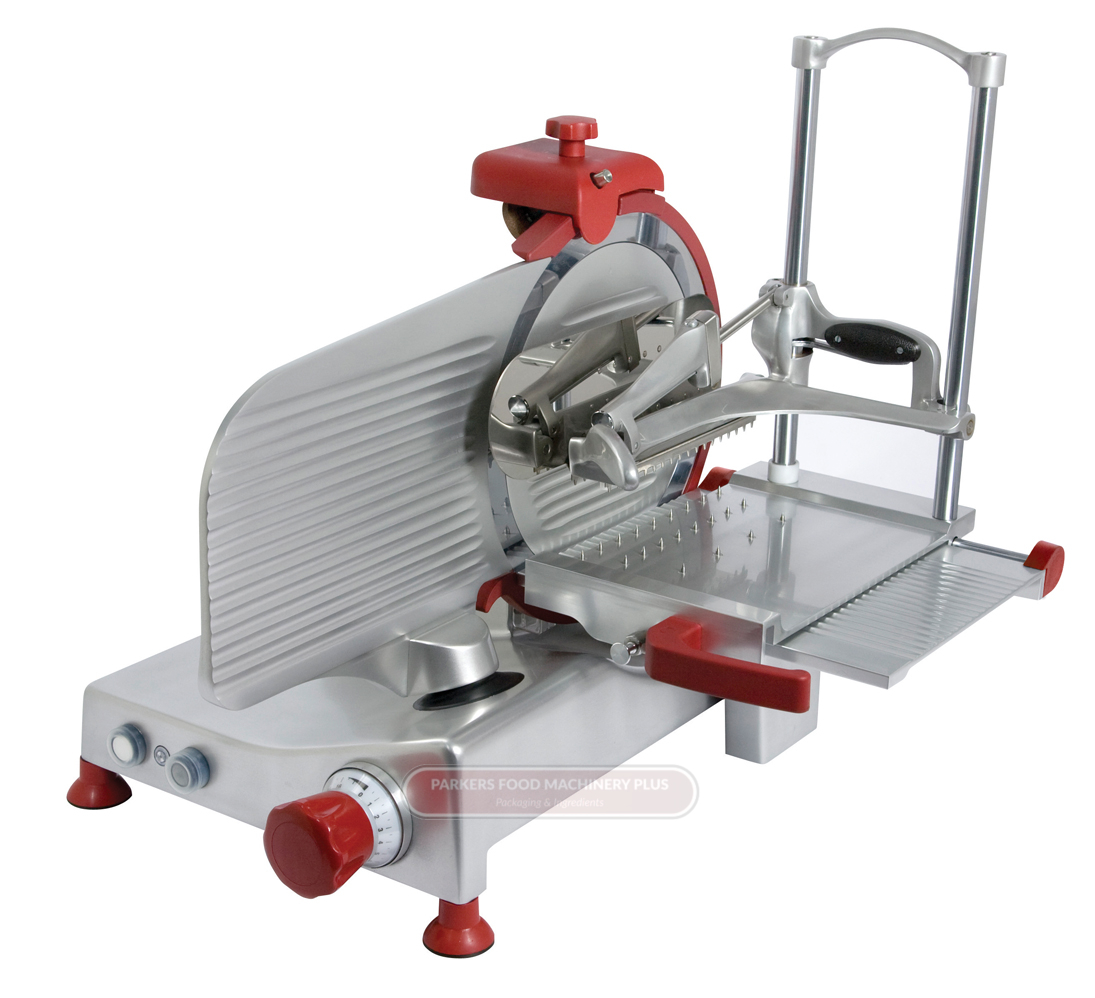

300mm Manconi Smarty 300VX BVC Slicer 230v

This machine is suitable for raw ham and every kind of delicatessen. This model has a twin support arm, with adjustable last slice device. It fits very limited surfaces thanks to its reduced size, much better than other vertical models.

Excellent sliding movement of the carriage, perfect cut, quick and simple removal of components for easy and accurate cleaning: these are some of the most interesting features of this performing slicer.

Features
Belt trasmission
Easy to use built-in sharpener
Great slicing accuracy
Low loading height to reduce the operator strain
Removable plate
Carriage with stainless steel pusher
Reduced foot counter space
Removable sharpener, blade cover and slice deflector for easy cleaning
Perfect slip grooves for a more performing sliding movement

In compliance with European Directives 2006/42/CE (Machinery directive); 1935/2004/CE (Food material directive); 10/2011 UE (Food grade plastic directive; 2006/95/CE (Low voltage directive); 2011/65/UE (RoHS Directive); and european standards EN 1974:1998 (Slicers-Hygiene and safety requiremets); EN60204-1 (Safety of machinery); EN 55014 (Electromagnetic Compatibility) and next updates.

Specification – 300 VX BVC
Overall dimensions: 620 x 572 x 557 mm
Installation area: 501 x 389 mm
Cutting Capacity: Ø 220 mm – 255 x 220 mm
Blade diameter: 300 mm
Blade speed: 250 rpm
Slice thickness: 0 – 16mm
Carriage travel: 297mm
Electrical protection: IPX3
Net weight: 31.1kg
Electrical specifications: 230v, 50hz, monophase
