Manconi Kolossal 350 IK Dual Gear Driven 1 Phase

Description

350mm Manconi Kolossal 350IK Dual Gear Driven 230v



350 IK Dual



Gravity feed slicer, 350 mm diameter suitable for deli, cheese and cooked meat





Qualified to cut all types of  delicatessen and cheese, the slicer can be used also to cut cooked meat. The plate is tilted in order to facilitate the activity of the user. Precision cutting and cleaning simplicity, thanks to the rounded wash through shapes, make the machine an assential tool for the operator. As all Kolossal products, also the DUAL range can be cleaned with water jet.



Standard equipment



Gear box transmission



Built-in sharpener easy to use or separate sharpener for easy cleaning



Wide frame for the product



Low loading height; to reduce strain of the operator



Ultra smooth, polished aluminum surfaces and careful slip grooves to reduce friction and simplify cleaning



Limited counter space required



Removable sharpener, blade guard, deflector and plate for easy cleaning



In compliance with European Directives 2006/42/CE (Machinery directive); 1935/2004/CE (Food material directive); 10/2011 UE (Food grade plastic directive; 2006/95/CE (Low voltage directive); 2011/65/UE (RoHS Directive); and European standards EN 1974:1998 (Slicers-Hygiene and safety requirements); EN60204-1 (Safety of machinery); EN 55014 (Electromagnetic Compatibility) and next updates.



Modern and reliable On/Off switch

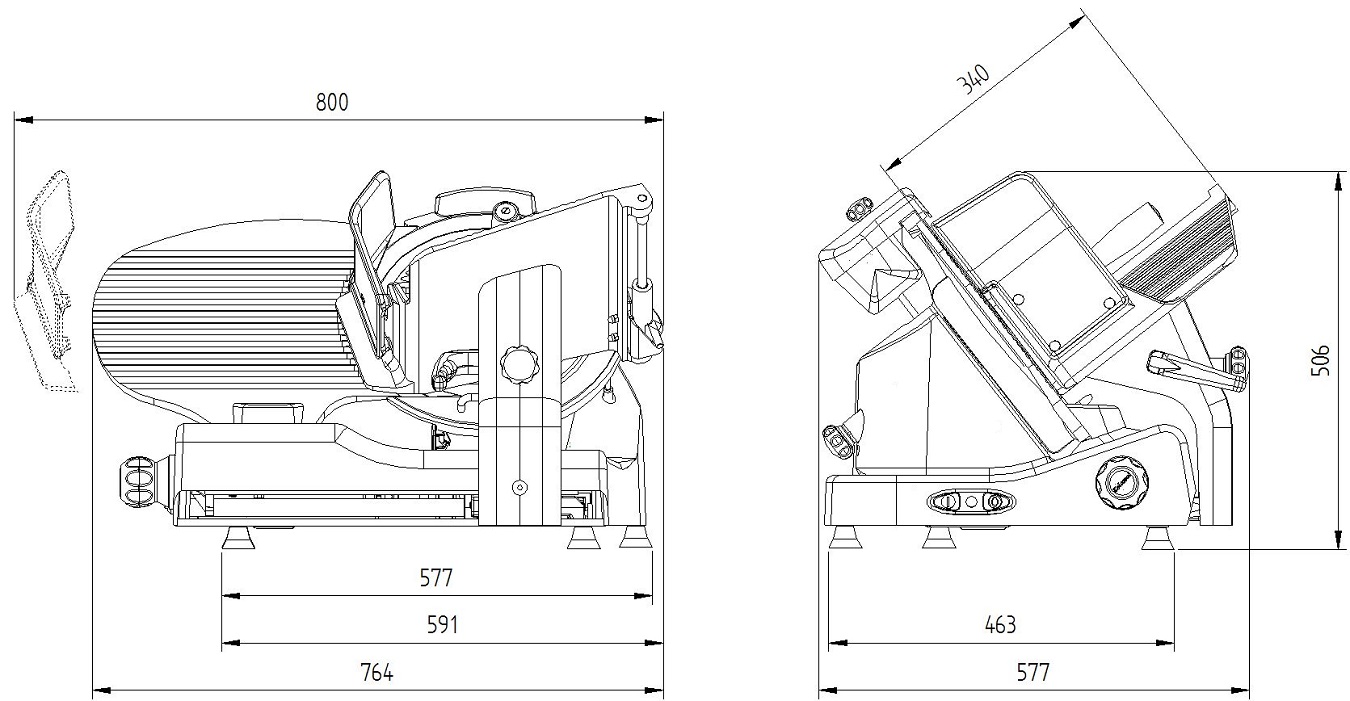

Technical features – 300 IK Dual



Installation Area: 577 x 463 mm



Working area: 800 x 577 x 506 mm



Blade Diameter: 350 mm



Slice thickness: 0-24mm



Blade Speed: 200 rpm (gear)



Electrical protection: IPX3 (Motor IPX5)



Net Weight: 45,4 kg



Carriage Travel: 361 mm



Electrical specifications: 220-230v



Cutting Capacity:  Ø 252mm – 300 x 225 mm
