Auto Wrapper AW-5600ATII – Weigh | Wrap | Label

SKU: N/A

x
Categories: , , Tags: , , , , , , , , , , , ,
Machinery

PAY FROM JUST

£ 155.54 per week

(excl. VAT) VIEW FINANCE OPTIONS
Want to speak to a member of our team for more information?
0330 058 4650

Description

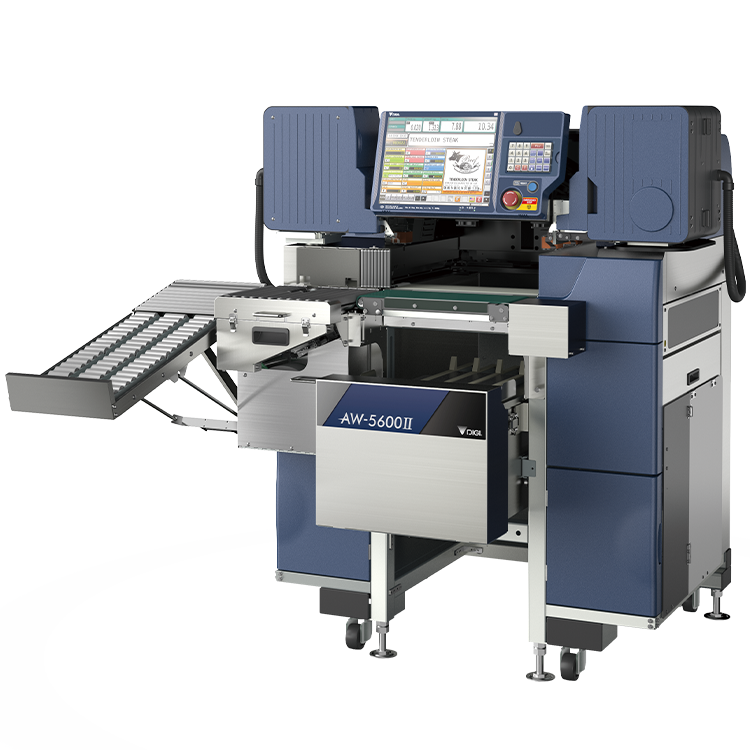

Auto Wrapper AW-5600ATII

Fully integrated weigh-wrap-label system designed for operational comfort and environmental friendliness.

Main Features
AW-5600ATII is a high-performance automatic weigh-wrap-label system that’s reliable, productive, and easy to operate. Efficient use of energy and consumables helps to minimize both cost and the machine’s ecological footprint.

Wrap, weigh, and label with a single machine
The AW-5600ATII allows you to weigh, wrap, and label on one machine with one operator. Watch the video to see how it processes products with speed and agility.

Maximize productivity

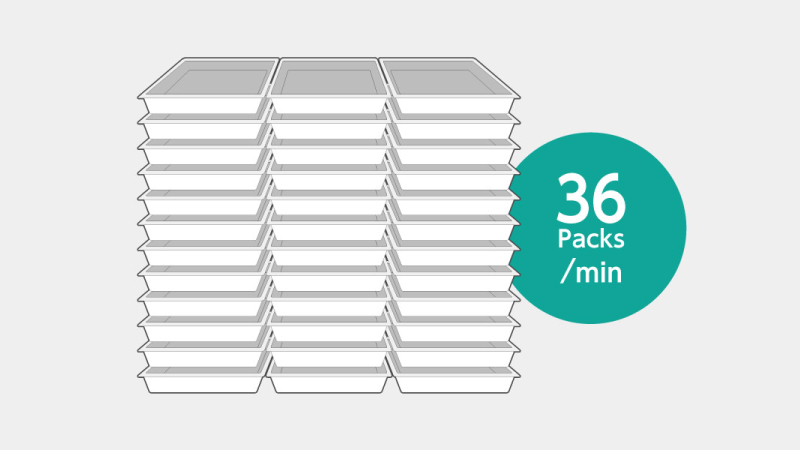

Increase output with high-speed processing of up to 36 packs per minute.

Simply place a product tray on the infeed, and in seconds, the machine seals the item and applies both POP and product labels with accurate weight and price information.

The machine automatically detects and adjusts to different tray sizes, further simplifying operation.

Save time and cost—reduce waste

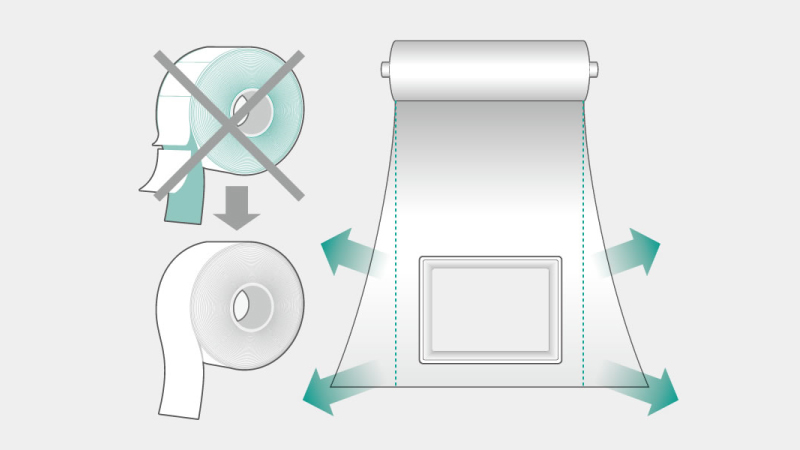

Super-stretch technology means less amount of film is required to cover the pack’s surface area.

This efficient use of film cuts down on waste and ensures that you get more out of a single roll, leading to a reduction in both the cost of consumables and maintenance downtime.

Linerless labels contain no paper backing, eliminating paper waste. And with the energy conservation mode, you can reduce power consumption when the machine is on standby.

Enhance product appearance
Wrapping solutions stretch film over the product with optimal tension for a high-quality finish, and a flexible label design broadens the possibilities for attractive product promotion.

With linerless labels, label length is automatically adjusted to fit the content, eliminating blank space while guaranteeing that necessary product information is clearly displayed.

These features ensure a top-quality presentation to enhance the value of your product.

Wrapping

Wrapping speed Max. 36 packages/min.
Package size Width: 130 to 380 mm / 5.1-15 inches

Height: 10 to 130 mm /0.4-5.1 inches

Depth: 80 to 254 mm / 3.1-10 inchesThe combination of the maximum size of each dimension cannot be used.

The size of the package that can be wrapped also depends on the film to use.
Film roll capacity One
Film width 300 to 450 mm



Weighing

Interval type Multi interval Single interval
Capacity Max. 3/6 kg Max. 6/15 kg Max. 30 lb
Scale interval e=1/2 g e=2/5 g e=0.01 lb
Weighing range 20 g-6 kg 40 g-15 kg 0.20-30 lb
Max. wrapping capacity 5 kg 5 kg 11 lb



Labeling

Label type Thermal printer
Labeling application Automatic
Label width 40-80 mm/1.6-3.1 inches
Label length 28-105 mm/1.1-4.1 inches



Operation console

Display panel TFT LCD color (15 inches) touch panel
Operation keys Mechanical keys and touch screen
Memory for programmable files 18 GB



General

Power source and power consumption 208-240 V; 1 φ/3 φ; 60 Hz; 2.2 kVA,2.2 kW

220-240 V; 1 φ; 50/60 Hz; 2.2 kVA,2.2 kW
Net weight Approx. 400 kg / 882 lb



Variations

Model with a pack accumulator

AW-5600ATII

This model is equipped with a pack accumulator to accommodate trays after wrapping and labeling.



Model with promotional labeler

AW-5600ATII POP

In addition to product labels, this model is equipped with a labeler for promotional labels. The machine can automatically apply both product labels and promotional labels simultaneously.
Linerless labels can be applied by all labellers.

Model with bottom labeler

AW-5600ATII BP

In addition to product labels, this model is equipped with a labeler for the bottom label. The machine can automatically apply both product labels and bottom labels simultaneously.
Linerless labels can be applied by all labellers.

Additional information

Weight 12.82 kg
Power

1 Phase (220-240v)
Machine Type

1 Linerless Top Printer, Linerless Top and Bottom Printer, Over Wrapper
