Grupo Epelsa Atlantis Washdown Platform Scale
Atlantis
industrial scales
Food industry Transport and logistics Retail sale Agricultural and livestock Postal, Port and Airport automotive Manufacturing industry

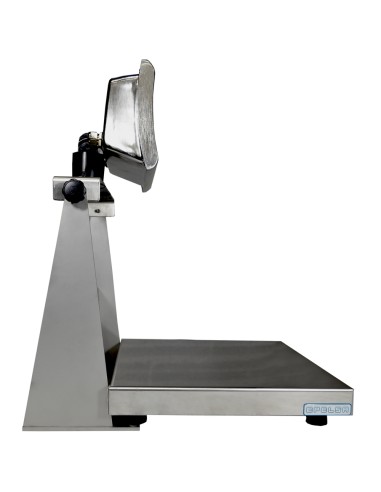

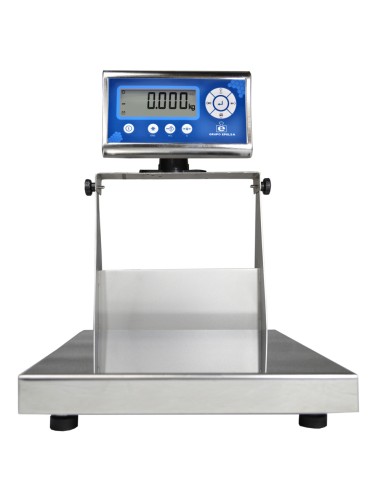

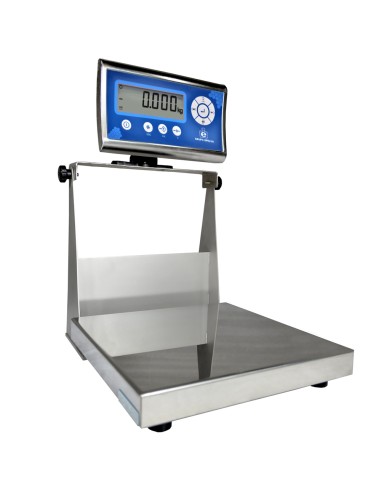

Set consisting of a DXN-60 viewer and an M30I platform with special column/support.
Characteristics
DXN-60 viewfinder
IP65 stainless steel waterproof housing.
Wall fixing for placement on the wall or column.
6-button keypad with 14mm high 6-digit LED numeric display.
Keyboard calibration.
Programmable indicator from 1kg to 150t.
Number of divisions: from 100 to 10,000 with steps of 100.
RS-232 output for printer or computer.
Alternate power supply: 220V +10% -15% and 50/60 Hz with TT.
Consumption: Network 7 VA max.
Protection against HF radiation and network outages.
Features Platform M30I
Single-cell tabletop platform with stainless steel structure in a matt polished finish.
Dimensions: 300 x 300mm x 46mm (minimum height).
4 adjustable feet that allow its level and installation on the floor or counter.
IP67 protection.
Capacities: 3 kg, 6 kg, 15 kg and 30 kg.
Additional information
| Weight | 20 kg |
|---|---|
| capacity | 3kg x 1g, 6kg x 2g, 15kg x 5g, 30kg x 10g |
Brand
Grupo Epelsa
