Grupo Epelsa ML-500 EVO Indicator With Platform

Description

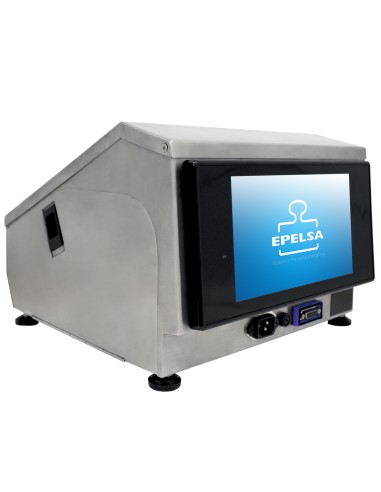

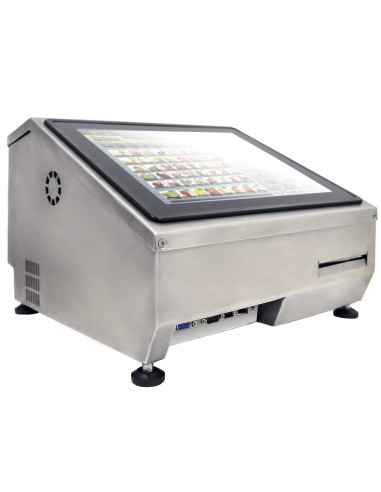

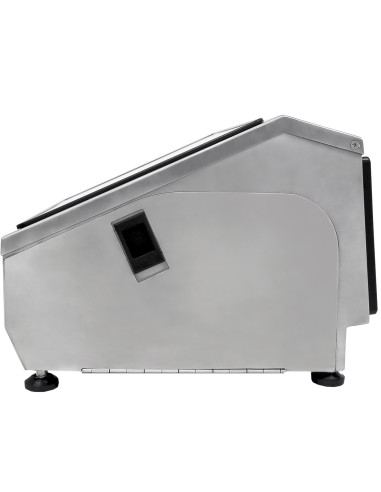

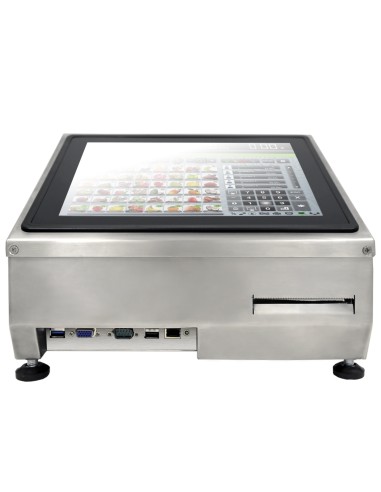

Grupo Epelsa ML-500 EVO Indicator With Platform

Indicator ML500. Linux
The constant evolution in labeling technology has led us to witness a remarkable transformation in the already outstanding ML 500 labeler. This device, known for its reliable performance, has undergone a re-styling process that goes beyond simple aesthetic renovation.

The ML 500 labeling machine, in its new, improved version, highlights its output of labels and tickets that incorporates a saw that directly cuts the paper.

Print 60mm or 80mm wide labels or tickets with no length limit, configurable from our ENCASE ticket and label software.

Possibility of printing paper formats:

Continuous roll of standard tickets

Standard Adhesive Label Roll

Adhesive continuous paper roll

Options:

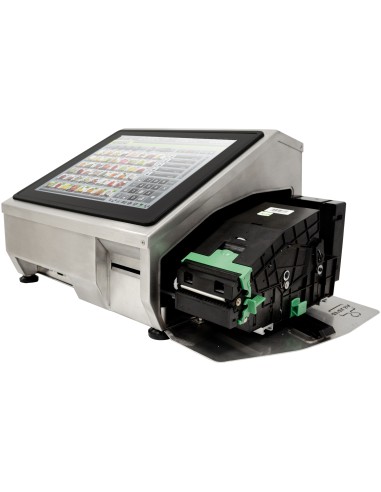

– Linerless roll (ECO adhesive paper type, elimination of waste in printing).

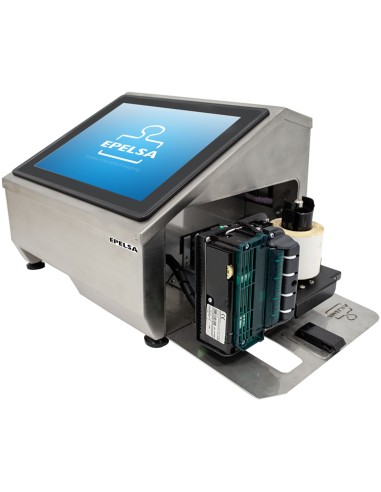

– Linerless PRO printer prints at speeds of up to 250mm/s, with a resolution of 203 dpi (640 dots/line) and features an auto-cutter.

GENERAL
Large Screens:

This display incorporates a 12-inch high-contrast touch screen for the operator and a 9-inch touch screen for the customer. The ML500 Linerless offers a clear and detailed visualization of all the information necessary for any process, guaranteeing an optimal user experience.

Connectivity:

The possibility of interconnecting several devices in an Ethernet network.

Possibility of connection with external printers and labelers via USB or Ethernet.

Connection to EPELSA repeaters.

RS232 or USB scanner.

Etc.

Memory:

Unlimited storage capacity for products, customers, families, counters, vendors, etc. Management, traceability of beef, fish, fruit and vegetables, generic.

Nutritional information, as well as allergen ingredients.

Printing of packaging data per product, including an unlimited number of characters.

Logo printing:

Among its many and varied functions, the printing of packaging data per product with an unlimited number of characters stands out, as well as the possibility of including nutritional information and allergen ingredients. In addition, the ML500 allows the printing of various types of logos, such as company, article or quality icons, as well as the selection of independent allergen ingredient icons per product.

Company logo, article logo, quality icons, selection of allergen ingredient icons by products.

Barcodes:

EAN13, EAN8, ITF14, ITF25, CODE128, EAN128, GS1 DATABAR, DATAMATRIX,

QR Code, among others.

Software:

Connection with NAUTILUS (Cloud software), Desktop.

Document design with ENCASE.

Technical Data
Technical characteristics
» CPU: Intel 4-core microprocessors.

» DDR III RAM memory (8GB).

» Storage: MSATA 256GB SSD device.

» Ethernet to Gbit communication (Wifi Option).

» USB Connectivity (4 External: 2×2.0 /2×3.0)

» RS232 port up to 115000 bd.

» VGA output for connection to external display

» Godex external labeling connection.

» Connection to scanner.

SOFTWARE
» Desktop and Nautilus

» ENCASE: Label and ticket design software.

» Webserver: For programming and data consultation.

» Remote and automatic software updates.

» Operating System: Linux Ubuntu or Windows.

» Remote maintenance, VNC, FTP, SSH, SCP, TeamViewer…

CAPABILITIES
» From 3kg to 90000 kg

» Programmable capabilities (user defined)

» Multi-range or multi-interval.

» 1 or 2 intervals or ranges of 3000 or 6000 divisions

OTHERS
Complies with EU Regulation 1169/2011, providing nutritional information, allergens, etc.

NMi certification according to WELMEC 8.8 Issue 2, EN 45501:2015, OIML R 76-1 (2006)
