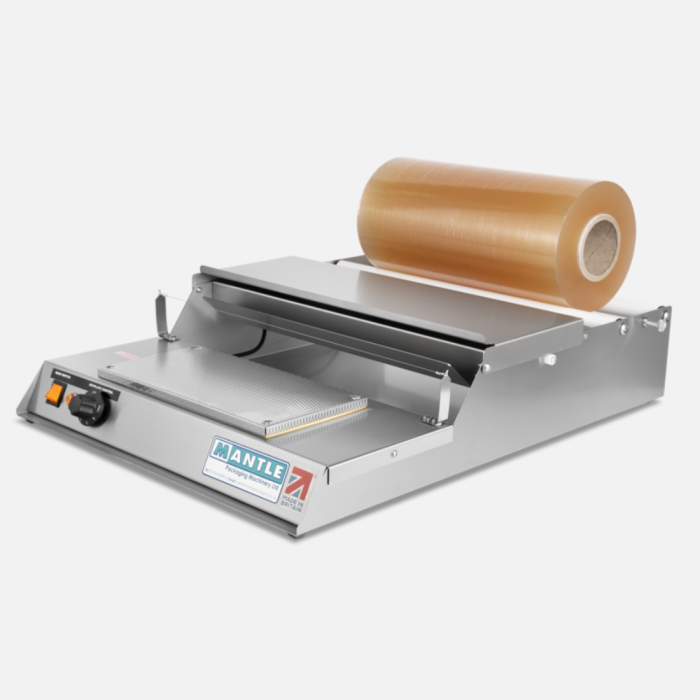

Over Wrapper TWS45 450mm Premium Stainless Steel

SKU: PFM37062

£327.00 (excl. VAT)

£392.40 (incl. VAT)

x
Categories: ,
Machinery

Description

Over Wrapper TWS45 450mm Premium Stainless Steel



A low-cost tray wrapping unit designed for use with low migration PVC and Polyolefin stretch films up to 450mm wide in store or central packaging use.



Technical Specification



Maximum film width: 450mm



Electrics: 240vac / 3amp



Machine dimensions: 660 x 510mm



Weight: 10kg



General Applications



The TW45 hand stretch wrap machines are extensively used in supermarkets, butchers, grocers and contract packers, for wrapping meat, fish, cheese, fruit and vegetables.



Product Features



Choice of easy clean white epoxy paint or stainless steel finish



Twin roller film holders with adjustable brake



Quick change cutting wire



Adjustable temperature controller



Quick change cutting wires



Accepts stretch films up to 450mm wide



Electrical Specification



240v 5Hz 1ph 375w.



Length 622mm Width 525mm



Height 114mm



The sealing hotplate has a rigidized stainless steel cover, 150mm X 305mm.



Temperature range 90 to 130C controlled by an adjustable energy regulator.



A mild steel Teflon coated hotplate cover can also be supplied for use with stretch films requiring higher sealing temperatures. The film is cut using a 0.020″ Dia.



Nichrome resistance hot wire.



A low voltage twin bobin insulated transformer supplies 7 volts at 2 AMP to this circuit.



This machine is manufactured using zinc coated mild steel and epoxy powder coated white.



The wrapping bridge is of 304 food quality stainless steel.



TWS45CR Stainless Cold Rod Hand Stretch Wrapper



PFM37062: ย Over Wrapper TWS45 Premium Stainless Steel

Additional information

Weight 12.82 kg
Power

1 Phase (220-240v)
Size/Capacity

18 Inch, 450mm
Features/Style

All Stainless Steel
Machine Type

Over Wrapper
No Downloads!
