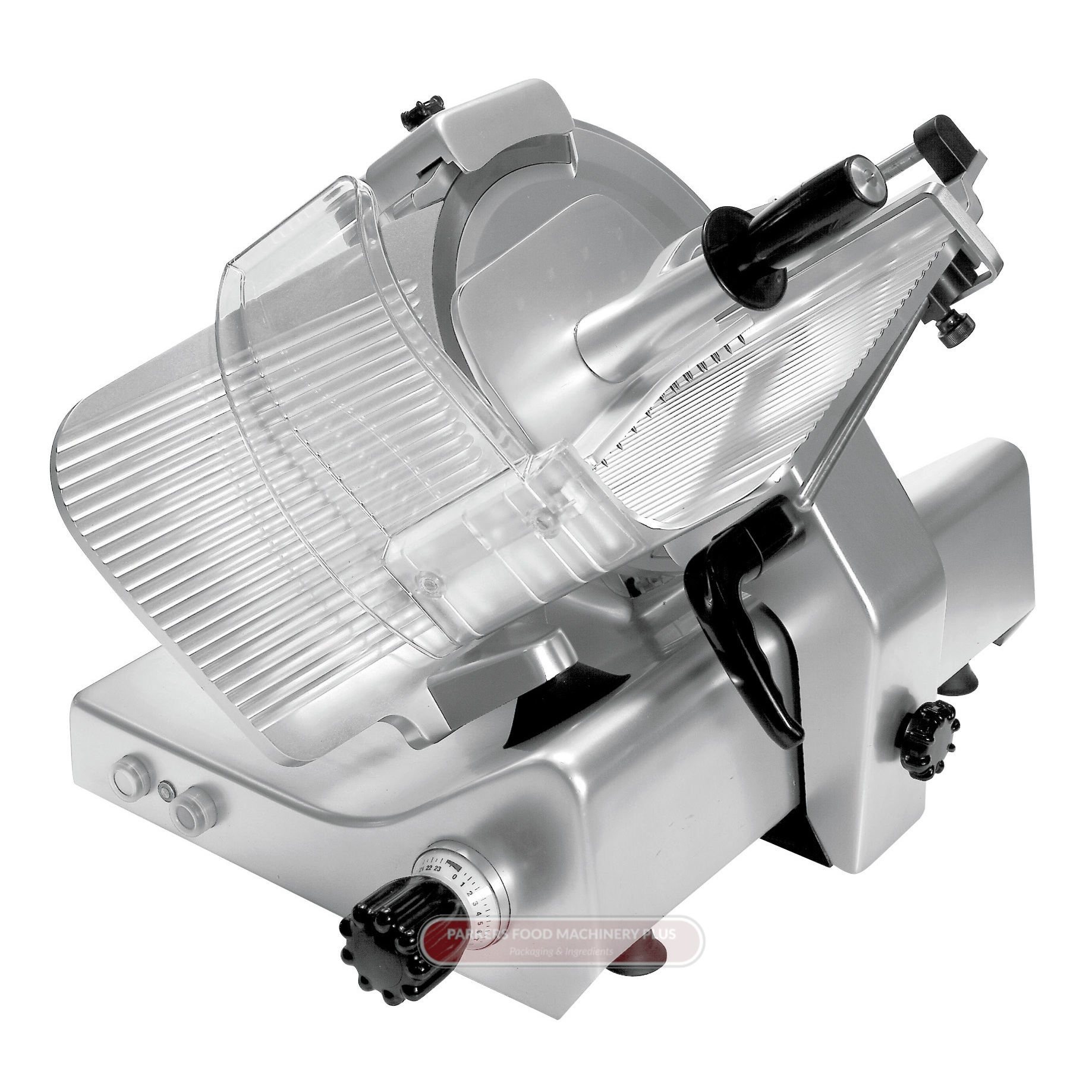

Manconi Kolossal 330 IK Gear Driven 1 Phase

Description

Manconi Kolossal 330 IK Gear Driven 1 Phase

330 IK

Kolossal Gravity feed slicer Mod. 330, suitable for deli, vegetables, bread and cheese

Slicer with great capacity and cutting precision. It has a reduced loading height that notably reduces the operator strain. The machine can have plates differently equipped, like: plate with swinging trasparent remnant holder (E option); plate with swinging aluminium remnant holder (EF option) or plate with self-locking clamping device, trasparent and removable remnant holder and sliding plate (AB option).

Standard equipment
Gear box transmission
Great capacity and precision slicing
Reduced counter space
Built-in sharpener, right way available and easy to be used
Low loading height, to reduce strain of the operator
Ultra smooth, polished aluminum surfaces and careful slip grooves, to reduce friction and simplify cleaning
Tilting away carriage; sharpener, blade guard, product deflector and sharpened remnant holder removable for a well done cleaning
Adjustable food fence
In compliance with European Norms: 2006/42/EC (machinery standards); 2006/95/EC (low voltage directive); 2004/108/EC (electromagnetic compatibility directive); 2011/65/UE (RoHS directive); 1935/2004/EC (food material directive) and their next updates. Follow also next harmonised standards: EN 1974:1988 + A1:2009 (slicing machines-safety and hygiene requirements); EN 60204-1 (safety of machinery); EN 55014 (electromagnetic compatibility); D.M. 21/03/73 (hygienic food tools requirements); 10/2011/UE (food grade plastic directive); and their next updates
Compliant with current European Directives and Regulations
FCMs (Food Contact Materials) certified product

Technical features – 330 IK
Overall dimensions 759 x 592 x 784 mm
Installation area 556 x 445 mm
Working area 786 x 592 x 784 mm
Blade diameter 330 mm
Blade speed 200 rpm (50 hz)
Slice thickness 0 to 24 mm
Electrical protection IPX3 (Motor IPX5)
Net weight 48 kg
Carriage travel 345 mm
Electrical specifications 220-230V / 360W a.c. monophase;
220-230V
Cutting capacity Ø 240 mm – 290 x 210 mm
