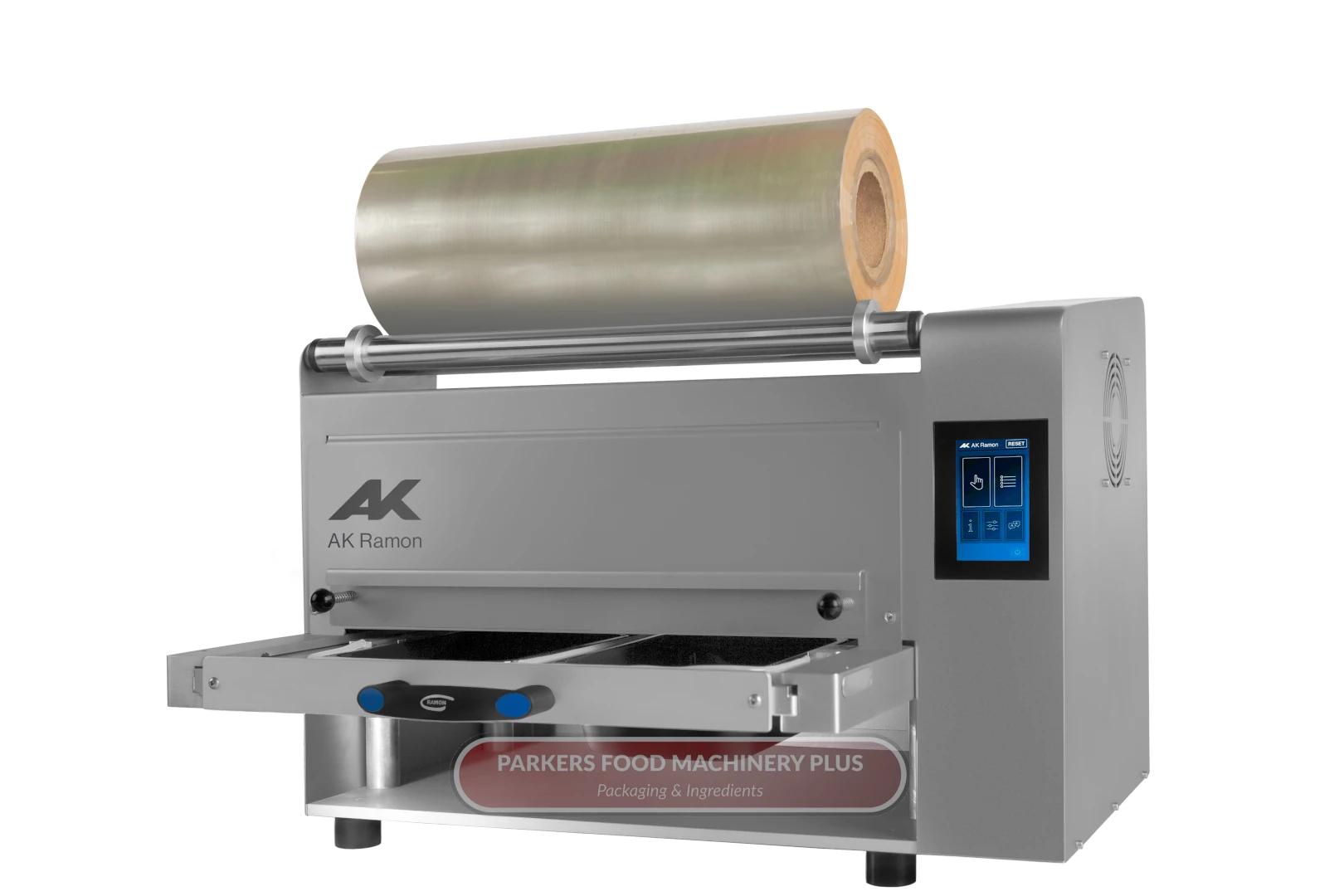

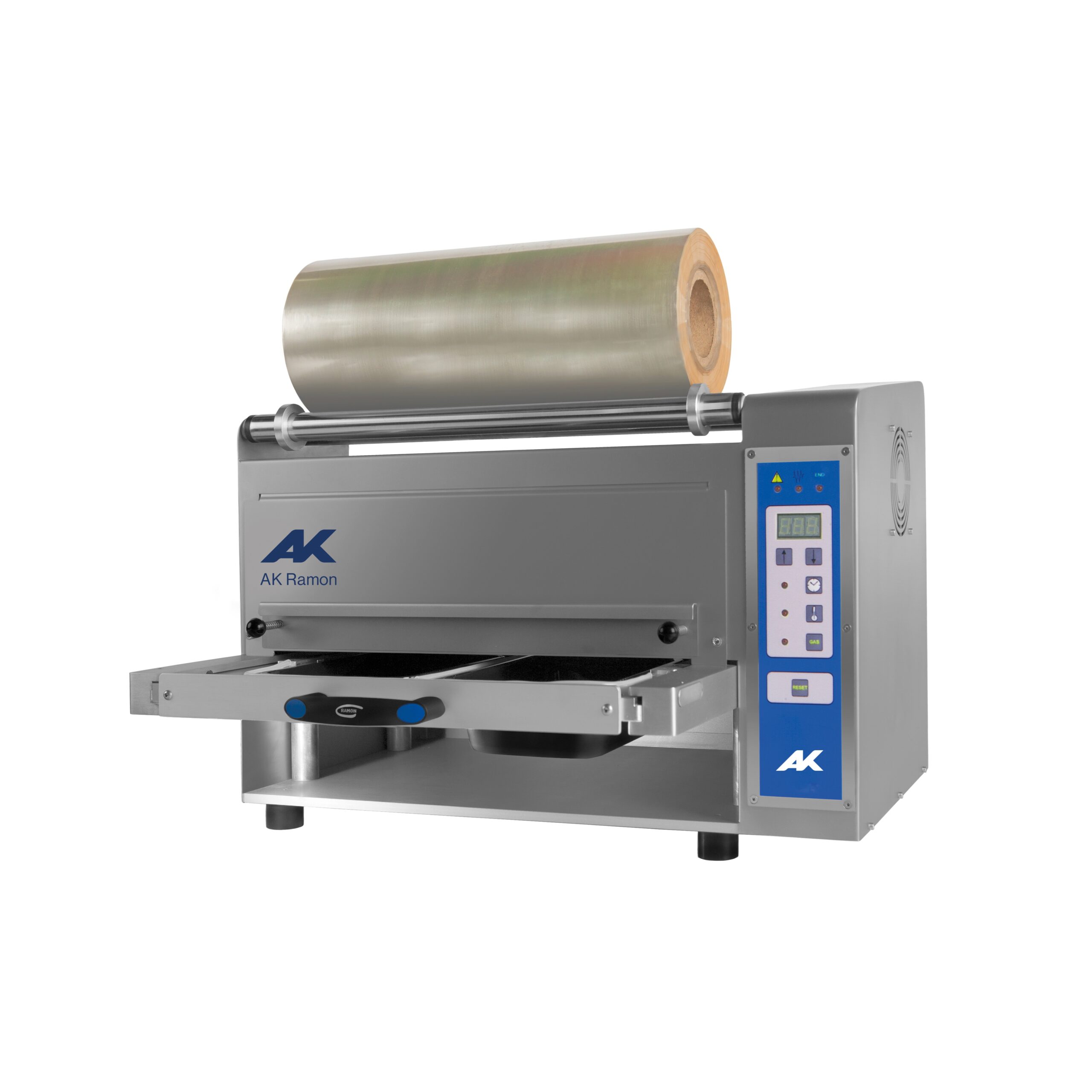

Ramon TS-300 / TS-300GF Semi Automatic Tray Sealer

Description

Semi-Automatic tray sealer AK-RAMON TS-300 / TS300GF

Description
Totally manufactured in AISI 304 stainless steel.
Die set in anodized aluminum.
Semi-automatic tray sealer.
Automatic sealing system.
Equipped with gas flushing.
Automatic film power supply.
The acoustic and luminous signal from the end of the cycle.
Perimetral cutting with the shape of the tray.
Digital panel with sealing temperature regulator (0°-230° C).
Compact and robust model.
Easy mold change, molds are interchangeable in a few seconds.
Fast heating of the selected temperature.
It allows working with different types of tray materials, PP, PET, ALUMINIUM…

Option (GF Version): Gas flushing entrance allows the M.A.P. system (modified atmosphere packaging).

Specification
Voltage: 220 V/ 1ph/ 50 Hz.
Maximum sealing surface: 320×260 mm
Film roll width: 430 mm.
Power: 1,500 W.

Standard molds (not included)
1/2 GN (320×260 mm) – 1 tray.
1/4 GN (260×160 mm) – 2 trays.
1/8 GN (168×130 mm) – 4 trays.

Any type and shape of the die set can be manufactured according to the customer trays.
